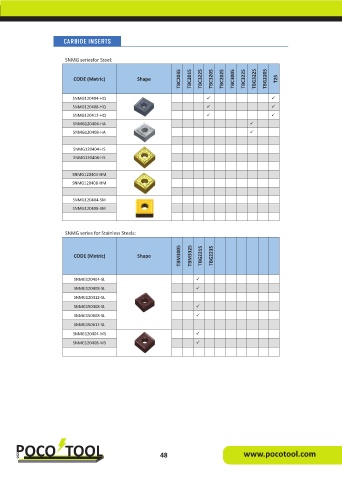

P. 48

SNMG seriesfor Steel:
                                                                  TBC2035   TBC2015   TBC3225   TBC3205   TBC2025   TBC3005   TBC3225   TBG3225   TBG2205   T25
                           CODE (Metric)          Shape


                           SNMG120404-HQ                                   ✓                      ✓
                           SNMG120408-HQ                                   ✓                      ✓
                           SNMG120412-HQ                                   ✓                      ✓
                           SNMG120404-HA                                                   ✓
                           SNMG120408-HA                                                   ✓

                           SNMG120404-HS
                           SNMG120408-HS

                           SNMG120404-HM
                           SNMG120408-HM

                           SNMG120404-SM
                           SNMG120408-SM


                        SNMG series for Stainless Steels:


                                                                  TBM3005   TBM3325
                           CODE (Metric)          Shape                  TBG2215   TBG2235




                           SNMG120404-SL                               ✓
                           SNMG120408-SL                               ✓
                           SNMG120412-SL
                           SNMG150408-SL                               ✓

                           SNMG150608-SL                               ✓
                           SNMG150612-SL
                           SNMG120404-MS                               ✓
                           SNMG120408-MS                               ✓







                      9
