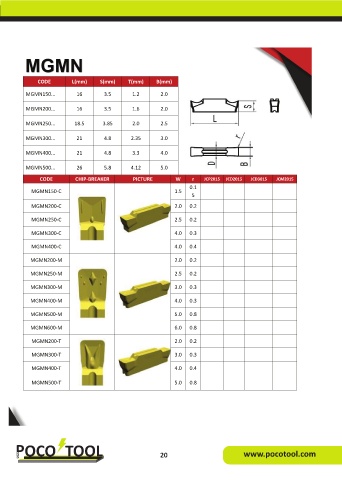

Solid Metalworking LNC. Limited Grooving

CODE L(mm) S(mm) T(mm) B(mm)

MGMN150... 16 3.5 1.2 2.0

MGMN200... 16 3.5 1.6 2.0

MGMN250... 18.5 3.85 2.0 2.5

MGMN300... 21 4.8 2.35 3.0

MGMN400... 21 4.8 3.3 4.0

MGMN500... 26 5.8 4.12 5.0
CODE CHIP-BREAKER PICTURE W r JCP2015 JCD2015 JCD3015 JCM2015
0.1
MGMN150-C 1.5
5
MGMN200-C 2.0 0.2

MGMN250-C 2.5 0.2

MGMN300-C 4.0 0.3

MGMN400-C 4.0 0.4

MGMN200-M 2.0 0.2

MGMN250-M 2.5 0.2

MGMN300-M 3.0 0.3

MGMN400-M 4.0 0.3

MGMN500-M 5.0 0.8

MGMN600-M 6.0 0.8

MGMN200-T 2.0 0.2

MGMN300-T 3.0 0.3

MGMN400-T 4.0 0.4

MGMN500-T 5.0 0.8
