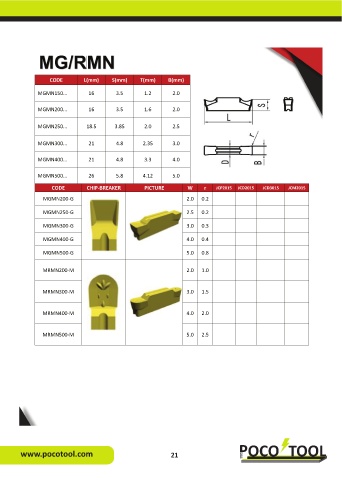

P. 21
Solid Metalworking LNC. Limited Grooving
CODE L(mm) S(mm) T(mm) B(mm)
MGMN150... 16 3.5 1.2 2.0
MGMN200... 16 3.5 1.6 2.0
MGMN250... 18.5 3.85 2.0 2.5
MGMN300... 21 4.8 2.35 3.0
MGMN400... 21 4.8 3.3 4.0
MGMN500... 26 5.8 4.12 5.0
CODE CHIP-BREAKER PICTURE W r JCP2015 JCD2015 JCD3015 JCM2015
MGMN200-G 2.0 0.2
MGMN250-G 2.5 0.2
MGMN300-G 3.0 0.3
MGMN400-G 4.0 0.4
MGMN500-G 5.0 0.8
MRMN200-M 2.0 1.0
MRMN300-M 3.0 1.5
MRMN400-M 4.0 2.0
MRMN500-M 5.0 2.5
