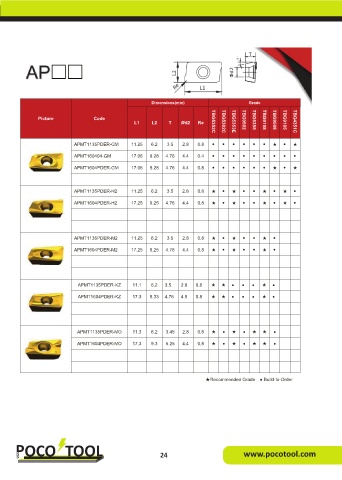

Solid Metalworking LNC. Limited Milling

Dimensions(mm) Grade

Picture Code TBG9502 TBG5355 TBG9108 TBG9508 TBG9105
L1 L2 T Ød2 Re TBG5352C TBG5302C TBG5353E TBG4351C

★ ★
APMT1135PDER-GM 11.25 6.2 3.5 2.8 0.8 ● ● ● ● ● ● ●
APMT160404-GM 17.06 9.28 4.76 4.4 0.4 ● ● ● ● ● ● ● ● ●
★ ★
APMT1604PDER-GM 17.06 9.28 4.76 4.4 0.8 ● ● ● ● ● ● ●

★ ★ ★ ★
APMT1135PDER-H2 11.25 6.2 3.5 2.8 0.8 ● ● ● ● ●
★ ★ ★ ★
APMT1604PDER-H2 17.25 9.25 4.76 4.4 0.8 ● ● ● ● ●

★ ★ ★
APMT1135PDER-M2 11.25 6.2 3.5 2.8 0.8 ● ● ● ●
★ ★ ★
APMT1604PDER-M2 17.25 9.25 4.76 4.4 0.8 ● ● ● ●

APMT1135PDER-KZ 11.1 6.2 3.5 2.8 0.8 ★ ★ ● ● ● ★ ●

APMT1604PDER-KZ 17.3 9.33 4.76 4.5 0.8 ★ ★ ● ● ● ★ ●

APMT1135PDER-MO 11.3 6.2 3.45 2.8 0.8 ★ ● ★ ● ★ ★ ●
APMT1604PDER-MO 17.3 9.3 5.25 4.4 0.8 ★ ● ★ ● ★ ★ ●

★Recommended Grade ● Build-to-Order
