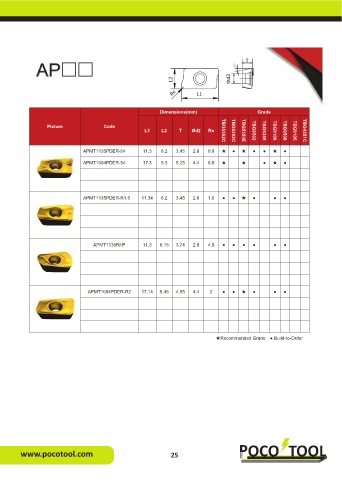

Solid Metalworking LNC. Limited Milling

Dimensions(mm) Grade

Picture Code
L1 L2 T Ød2 Re TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

APMT1135PDER-54 11.3 6.2 3.45 2.8 0.8 ★ ● ★ ● ● ★ ●

APMT1604PDER-54 17.3 9.3 5.25 4.4 0.8 ★ ★ ● ★ ●

APMT1135PDER-R1.6 11.34 6.2 3.45 2.8 1.6 ● ● ★ ● ● ●

APMT1135RHF 11.3 6.15 3.74 2.8 4.8 ● ● ● ● ● ●

APMT1604PDER-R2 17.14 9.46 4.95 4.4 2 ● ● ★ ● ● ●

★Recommended Grade ● Build-to-Order
