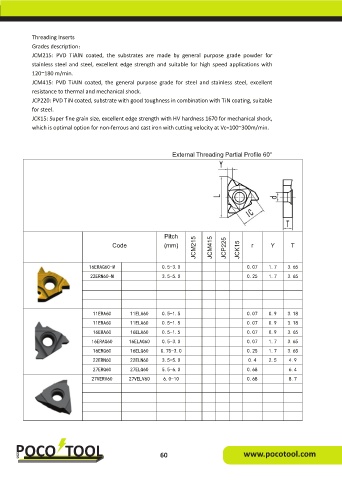

P. 60

Threading Inserts
             Grades description:
             JCM215:  PVD  TiAlN  coated,  the  substrates  are  made  by  general  purpose  grade  powder  for
             stainless steel and steel, excellent edge strength and suitable for high speed applications with
             120~180 m/min.
             JCM415:  PVD  TiAlN  coated,  the  general  purpose  grade  for  steel  and  stainless  steel,  excellent
             resistance to thermal and mechanical shock.
             JCP220: PVD TiN coated, substrate with good toughness in combination with TiN coating, suitable
             for steel.
             JCK15: Super fine grain size, excellent edge strength with HV hardness 1670 for mechanical shock,
             which is optimal option for non-ferrous and cast iron with cutting velocity at Vc=100~300m/min.


                                                               External Threading Partial Profile 60°















                                                            Pitch
                                                                       JCM215   JCM415   JCP225   JCK15
                                         Code               (mm)                           r      Y      T



                                 16ERAG60-M                0.5-3.0                       0.07    1.7    3.65
                                 22ERN60-M                 3.5-5.0                       0.25    1.7    3.65



                                  11ERA60       11ELA60    0.5-1.5                       0.07    0.9    3.18
                                  11ERA60       11ELA60    0.5-1.5                       0.07    0.9    3.18

                                  16ERA60       16ELA60    0.5-1.5                       0.07    0.9    3.65
                                  16ERAG60     16ELAG60    0.5-3.0                       0.07    1.7    3.65
                                  16ERG60       16ELG60    0.75-3.0                      0.25    1.7    3.65
                                  22ERN60       22ELN60    3.5-5.0                        0.4    2.5    4.9

                                  27ERQ60       27ELQ60    5.5-6.0                       0.68           6.4
                                  27VERV60     27VELV60     6.0-10                       0.68           8.7
