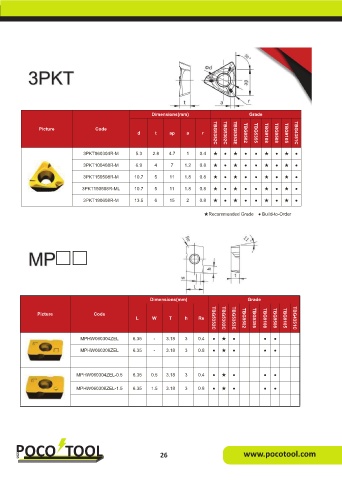

Solid Metalworking LNC. Limited Milling

Dimensions(mm) Grade

Picture Code
d t ap a r TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

3PKT060304R-M 5.3 2.8 4.7 1 0.4 ★ ● ★ ● ● ★ ● ★ ●
3PKT100408R-M 6.9 4 7 1.2 0.8 ★ ● ★ ● ● ★ ● ★ ●

3PKT150508R-M 10.7 5 11 1.8 0.8 ★ ● ★ ● ● ★ ● ★ ●

3PKT150508R-ML 10.7 5 11 1.8 0.8 ★ ● ★ ● ● ★ ● ★ ●
3PKT190608R-M 13.5 6 15 2 0.8 ★ ● ★ ● ● ★ ● ★ ●

★Recommended Grade ● Build-to-Order

Dimensions(mm) Grade

Picture Code
L W T h Re TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

MPHW060304ZEL 6.35 - 3.18 3 0.4 ● ★ ● ● ●

MPHW060308ZEL 6.35 - 3.18 3 0.8 ● ★ ● ● ●

MPHW060304ZEL-0.5 6.35 0.5 3.18 3 0.4 ● ★ ● ● ●

MPHW060308ZEL-1.5 6.35 1.5 3.18 3 0.8 ● ★ ● ● ●

★Recommended Grade ● Build-to-Order
