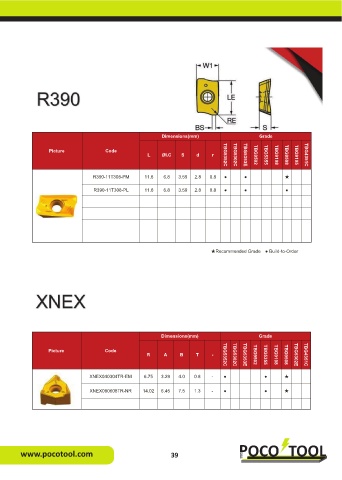

P. 39

Solid Metalworking LNC. Limited                                                            Milling




















                                                           Dimensions(mm)                     Grade

                   Picture             Code
                                                      L    ØI.C   S    d     r   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                                  R390-11T308-PM     11.6   6.8  3.59  2.8  0.8  ●      ●              ★

                                   R390-11T308-PL    11.6   6.8  3.59  2.8  0.8  ●      ●              ●












                                                                             ★Recommended Grade ● Build-to-Order
















                                                           Dimensions(mm)                     Grade


                  Picture              Code
                                                      R     A     B    T     -   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG5302E  TBG4351C



                                 XNEX040304TR-EM     6.75  3.29  4.0   0.8   -   ●              ●      ★

                                 XNEX080608TR-NR    14.02  6.45  7.5   1.3   -   ●              ●      ★



                                                                            ★Recommended Grade ● Build-to-Order





                                                            17 / 19
        www.pocotool.com                                      39
