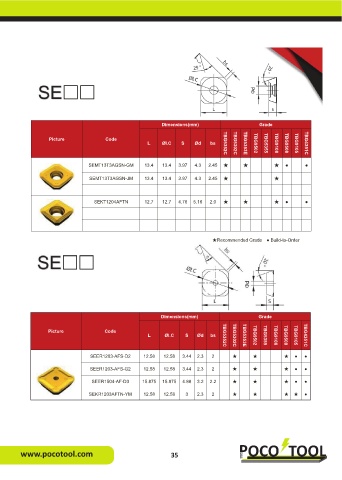

Solid Metalworking LNC. Limited Milling
Dimensions(mm) Grade
Picture Code
L ØI.C S Ød bs TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
SEMT13T3AGSN-GM 13.4 13.4 3.97 4.3 2.45 ★ ★ ★ ● ●
SEMT13T3AGSN-JM 13.4 13.4 3.97 4.3 2.45 ★ ★
SEKT1204AFTN 12.7 12.7 4.76 5.16 2.0 ★ ★ ★ ● ●
★Recommended Grade ● Build-to-Order
Dimensions(mm) Grade
Picture Code
L ØI.C S Ød bs TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
SEER1203-AFS-D2 12.58 12.58 3.44 2.3 2 ★ ★ ★ ● ●
SEER1203-AFS-G2 12.58 12.58 3.44 2.3 2 ★ ★ ★ ● ●
SEER1504-AF-D3 15.875 15.875 4.88 3.2 2.2 ★ ★ ★ ● ●
SEKR1203AFTN-YM 12.58 12.58 3 2.3 2 ★ ★ ★ ★ ●
★Recommended Grade ● Build-to-Order
