P. 34

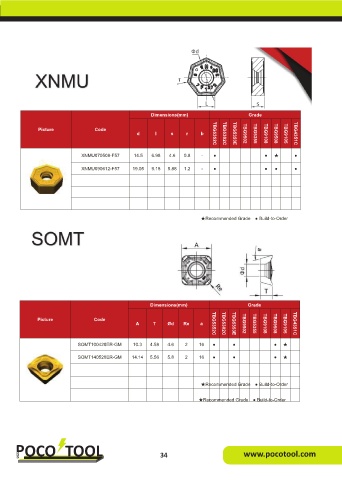

Solid Metalworking LNC. Limited Milling
Dimensions(mm) Grade
Picture Code
d I s r b TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
XNMU070508-F57 14.5 6.98 4.6 0.8 - ● ● ★ ●
XNMU090612-F57 19.05 9.18 5.88 1.2 - ● ● ● ●
★Recommended Grade ● Build-to-Order
Dimensions(mm) Grade
Picture Code
A T Ød Re a TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
SOMT100420ER-GM 10.3 4.58 4.6 2 16 ● ● ● ★
SOMT140520ER-GM 14.14 5.56 5.8 2 16 ● ● ● ★
★Recommended Grade ● Build-to-Order
★Recommended Grade ● Build-to-Order
