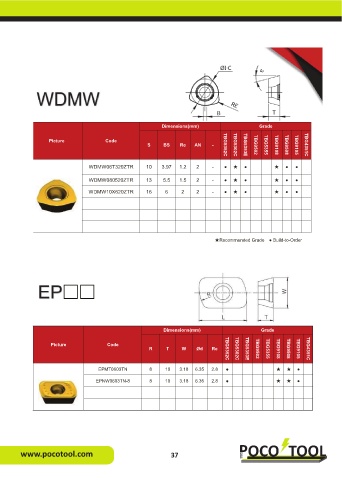

Page 37 - Poco Tool E-Katalog
P. 37
Solid Metalworking LNC. Limited Milling
Dimensions(mm) Grade
Picture Code
S BS Re AN - TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
WDMW06T320ZTR 10 3.97 1.2 2 - ● ★ ● ★ ● ●
WDMW080520ZTR 13 5.5 1.5 2 - ● ★ ● ★ ● ●
WDMW10X620ZTR 16 6 2 2 - ● ★ ● ★ ● ●
★Recommended Grade ● Build-to-Order
Dimensions(mm) Grade
Picture Code
R T W Ød Re TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C
EPMT0603TN 8 10 3.18 6.35 2.8 ● ★ ★ ●
EPNW0603TN-8 8 10 3.18 6.35 2.8 ● ★ ★ ●
★Recommended Grade ● Build-to-Order
15 / 19
www.pocotool.com 37
