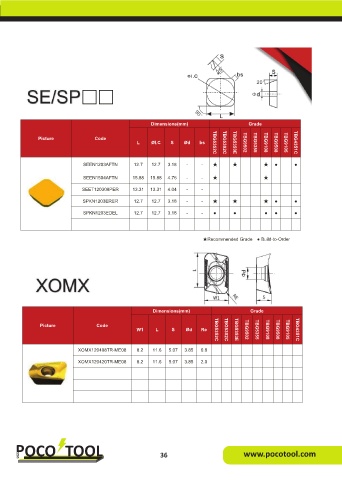

P. 36

Solid Metalworking LNC. Limited                                                             Milling

















                                                       Dimensions(mm)                     Grade

               Picture             Code
                                                  L    ØI.C   S    Ød   bs   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                               SEEN1203AFTN      12.7  12.7  3.18   -    -   ★      ★          ★   ●      ●

                               SEEN1504AFTN     15.88  15.88  4.76  -    -   ★                 ★

                              SEET120308PER     13.31  13.31  4.04  -    -
                               SPKN1203ERER      12.7  12.7  3.18   -    -   ★      ★          ★   ●      ●

                               SPKN1203EDEL      12.7  12.7  3.18   -    -   ●       ●          ●  ●      ●




                                                                          ★Recommended Grade ● Build-to-Order














                                                        Dimensions(mm)                     Grade

               Picture              Code
                                                  W1     L     S    Ød   Re   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                             XOMX120408TR-ME08    8.2   11.6  5.07  3.85  0.8
                             XOMX120420TR-ME08    8.2   11.6  5.07  3.85  2.0









                                                                          ★Recommended Grade  ● Build-to-Order
