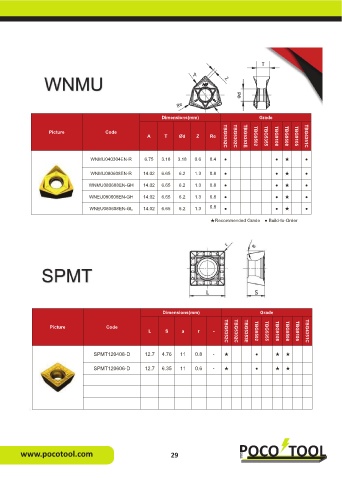

Page 29 - Poco Tool E-Katalog

Solid Metalworking LNC. Limited Milling

Dimensions(mm) Grade

Picture Code
A T Ød Z Re TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

WNMU040304EN-R 6.75 3.18 3.18 0.6 0.4 ● ● ★ ●

WNMU080608EN-R 14.02 6.65 6.2 1.3 0.8 ● ● ★ ●

WNMU080608EN-GH 14.02 6.65 6.2 1.3 0.8 ● ● ★ ●
WNEU080608EN-GH 14.02 6.65 6.2 1.3 0.8 ● ● ★ ●

WNEU080608EN-GL 14.02 6.65 6.2 1.3 0.8 ● ● ★ ●

★Recommended Grade ● Build-to-Order

Dimensions(mm) Grade

Picture Code
L S a r - TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

SPMT120408-D 12.7 4.76 11 0.8 - ★ ● ★ ★

SPMT120606-D 12.7 6.35 11 0.6 - ★ ● ★ ★

★Recommended Grade ● Build-to-Order
