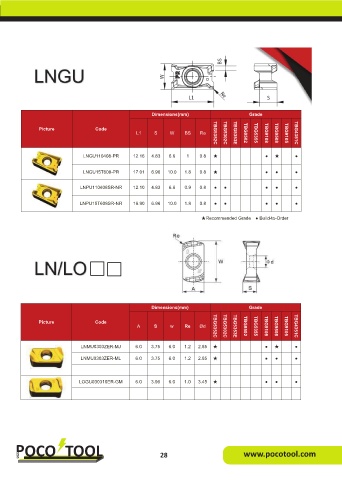

P. 28

Solid Metalworking LNC. Limited                                                             Milling















                                                       Dimensions(mm)                     Grade

               Picture             Code
                                                  L1    S     W    BS    Re   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                               LNGU110408-PR     12.16  4.83  6.6   1    0.8  ★                 ●  ★       ●


                               LNGU15T608-PR     17.01  6.96  10.0  1.8  0.8  ★                 ●   ●      ●

                              LNPU110408SR-NR    12.10  4.83  6.6  0.9   0.8  ●  ●              ●   ●      ●


                              LNPU15T608SR-NR    16.90  6.96  10.0  1.8  0.8  ●  ●              ●   ●      ●

                                                                         ★Recommended Grade ● Build-to-Order


















                                                       Dimensions(mm)                     Grade

               Picture             Code
                                                  A     S     w    Re   Ød   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                              LNMU0303ZER-MJ      6.0  3.75  6.0   1.2  2.85  ★                 ●  ★       ●
                              LNMU0303ZER-ML      6.0  3.75  6.0   1.2  2.85  ★                 ●   ●      ●




                             LOGU030310ER-GM      6.0  3.96  6.0   1.0  3.45  ★                 ●   ●      ●



                                                                          ★Recommended Grade ● Build-to-Order
