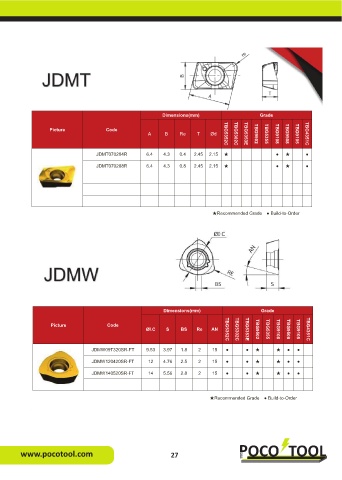

Solid Metalworking LNC. Limited                                                            Milling















                                                           Dimensions(mm)                     Grade

                   Picture             Code
                                                      A     B    Re     T   Ød   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                                    JDMT070204R      6.4    4.3  0.4  2.45  2.15  ★                 ●  ★       ●
                                    JDMT070208R      6.4    4.3  0.8  2.45  2.15  ★                 ●  ★       ●









                                                                             ★Recommended Grade ● Build-to-Order




















                                                            Dimensions(mm)                    Grade

                   Picture             Code
                                                     ØI.C    S    BS   Re    AN   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                                  JDMW09T320SR-FT    9.53  3.97   1.8   2    15   ●      ●  ★       ★   ●  ●
                                  JDMW120420SR-FT     12   4.76   2.5   2    15   ●      ●  ★       ★   ●  ●

                                  JDMW140520SR-FT     14   5.56   2.8   2    15   ●      ●  ★       ★   ●  ●



                                                                            ★Recommended Grade  ● Build-to-Order
