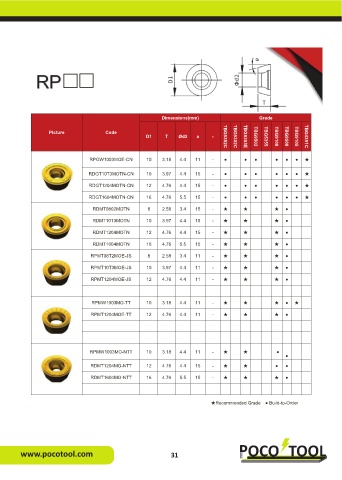

Page 31 - Poco Tool E-Katalog

Solid Metalworking LNC. Limited Milling

Dimensions(mm) Grade

Picture Code
D1 T Ød2 a - TBG5352C TBG5302C TBG5353E TBG9502 TBG5355 TBG9108 TBG9508 TBG9105 TBG4351C

RPGW1003MOE-CN 10 3.18 4.4 11 - ● ● ● ● ● ● ★

RDGT10T3MOTN-CN 10 3.97 4.4 15 - ● ● ● ● ● ● ★

RDGT1204MOTN-CN 12 4.76 4.4 15 - ● ● ● ● ● ● ★
RDGT1604MOTN-CN 16 4.76 5.5 15 - ● ● ● ● ● ● ★

RDMT0802MOTN 8 2.58 3.4 15 - ★ ★ ★ ●

RDMT10T3MOTN 10 3.97 4.4 15 - ★ ★ ★ ●
RDMT1204MOTN 12 4.76 4.4 15 - ★ ★ ★ ●

RDMT1604MOTN 16 4.76 5.5 15 - ★ ★ ★ ●
RPMT08T2MOE-JS 8 2.58 3.4 11 - ★ ★ ★ ●

RPMT10T3MOE-JS 10 3.97 4.4 11 - ★ ★ ★ ●

RPMT1204MOE-JS 12 4.76 4.4 11 - ★ ★ ★ ●

RPMW1003MO-TT 10 3.18 4.4 11 - ★ ★ ★ ● ★

RPMT1204MOE-TT 12 4.76 4.4 11 - ★ ★ ★ ●

RPMW1003MO-NTT 10 3.18 4.4 11 - ★ ★ ●
●
RDMT1204MO-NTT 12 4.76 4.4 15 - ★ ★ ● ●

RDMT1604MO-NTT 16 4.76 5.5 15 - ★ ★ ★ ●

★Recommended Grade ● Build-to-Order

9 / 19
