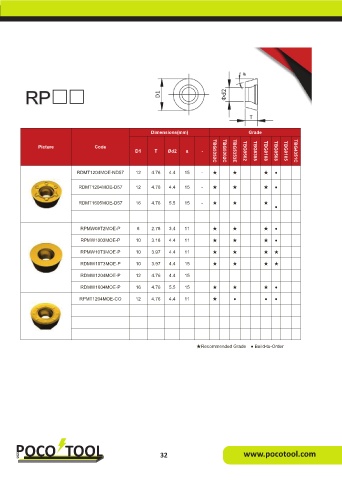

Solid Metalworking LNC. Limited                                                             Milling



















                                                       Dimensions(mm)                     Grade

               Picture             Code
                                                 D1     T    Ød2    a    -   TBG5352C  TBG5302C  TBG5353E  TBG9502  TBG5355  TBG9108  TBG9508  TBG9105  TBG4351C



                             RDMT1204MOE-ND57     12   4.76   4.4  15    -   ★      ★          ★   ●

                             RDMT1204MOE-D57      12   4.76   4.4  15    -   ★      ★          ★   ●


                             RDMT1605MOE-D57      16   4.76   5.5  15    -   ★      ★          ★
                                                                                                   ●


                              RPMW08T2MOE-P       8    2.78   3.4  11        ★      ★          ★   ●

                              RPMW1003MOE-P       10   3.18   4.4  11        ★      ★          ★   ●

                              RPMW10T3MOE-P       10   3.97   4.4  11        ★      ★          ★   ★
                              RDMW10T3MOE-P       10   3.97   4.4  15        ★      ★          ★   ★

                              RDMW1204MOE-P       12   4.76   4.4  15

                              RDMW1604MOE-P       16   4.76   5.5  15        ★      ★          ★   ●
                             RPMT1204MOE-CO       12   4.76   4.4  11        ★       ●          ●  ●









                                                                       ★Recommended Grade  ● Build-to-Order
